SERIES A – ROTOFLUX FOR HIGH SPEED APPLICATION

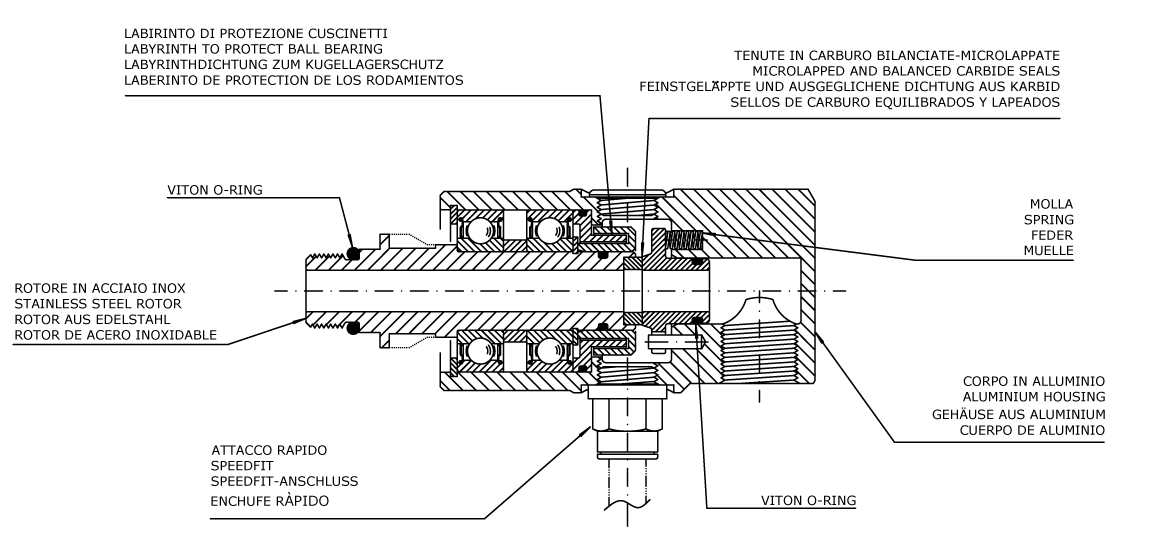

The unions of the model A are used for the passage of coolant through the machine tool spindles rotating at high speed. Well balanced seal assemblies in carbide allow a low friction torque and long life even with a poor filtration of the coolant.
Do not use the unions at max application limits without consulting ROTOFLUX.
| MODEL |  |  |  |  |
|---|
| Lubrorefrigerante | Coolant | A08 | 100 bar / 1.450 PSI | 90°C / 195°F | 15.000 | 60 μ
(MAX 100) |
| Kuhlschmiermittel | Liquide Frigeradordo | A10 | 40 bar / 580 PSI | 10.000 |
| Rotazione a secco | Dry run | A08 | / | / | NO | / |
| Trockenlauf | Rotaciones en seco | A10 | NO |

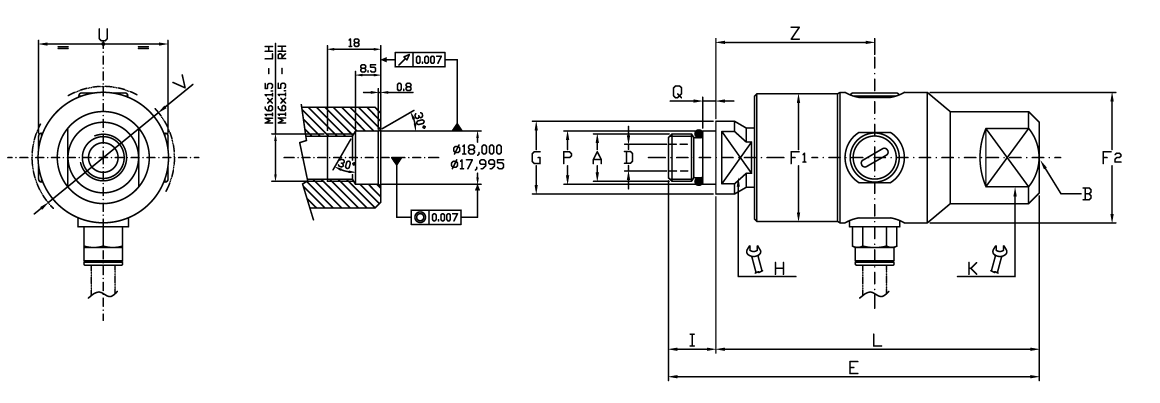

| Ordering code | Giunti radiali – 90° Unions – Radiale Drehdurchführungen – Juntas radiales |
| A | B | ? D | E | ? F1 | ? F2 | ? G | H | I | L | ? P | Q | U | ? V | Z | Kg |
| A08-1301-04R | M16 X 1,5 RH | G 1/4″ | 5 | 91 | 34 | 34,4 | 24,5 | 17 | 16 | 66 | 18 | 4,5 | 35 | 38 | 41 | 0,3 |
| A08-1301-05L | M16 X 1,5 LH |
| A10-1301-04R | M16 X 1,5 RH | G 3/8″ | 9 | 110 | 43 | 44 | 24,5 | 17 | 16 | 82 | 18 | 4,5 | 43,6 | 47,5 | 53,5 | 0,5 |
| A10-1301-05L | M16 X 1,5 LH |

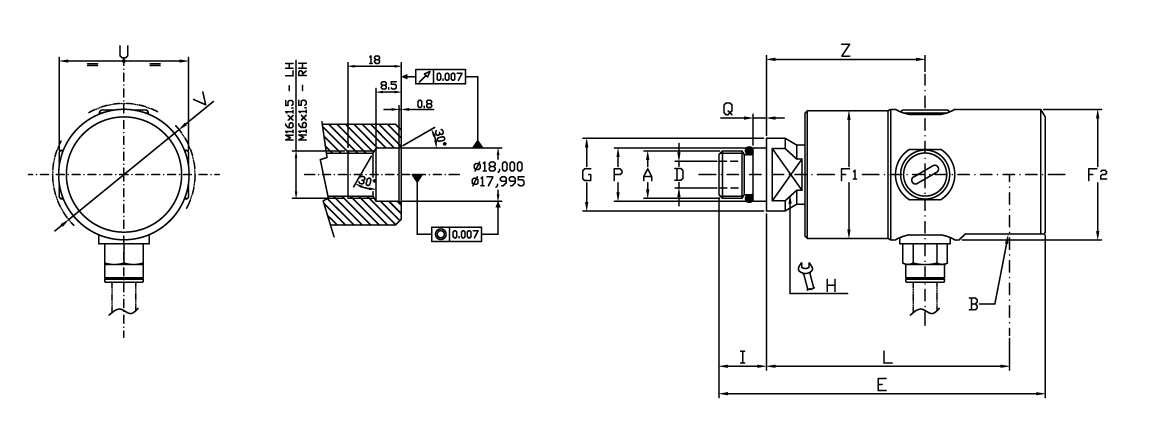

| Ordering code | Giunti assiali – Straight through Unions – Axiale Drehdurchführungen – Juntas axiales |
| A | B | ? D | E | ? F1 | ? F2 | ? G | H | K | I | L | ? P | Q | U | ? V | Z | Kg |
| A08-1302-04R | M16 X 1,5 RH | G 1/4″ | 5 | 108 | 34 | 34,4 | 24,5 | 17 | 30 | 16 | 92 | 18 | 4,5 | 35 | 38 | 41 | 0,3 |
| A08-1302-05L | M16 X 1,5 LH |
| A10-1302-04R | M16 X 1,5 RH | G 3/8″ | 9 | 125 | 43 | 44 | 24,5 | 17 | 24 | 16 | 109 | 18 | 4,5 | 43,6 | 47,5 | 53,5 | 0,5 |
| A10-1302-05L | M16 X 1,5 LH |
